Bio Decontamination System
Decontamination System
PASSTECH S50
PASSTECH S50
Closed-loop Dry Type | Touch Panel Interface | Easy Operating |
APPLICATIONS
VH2O2 Decontamination System

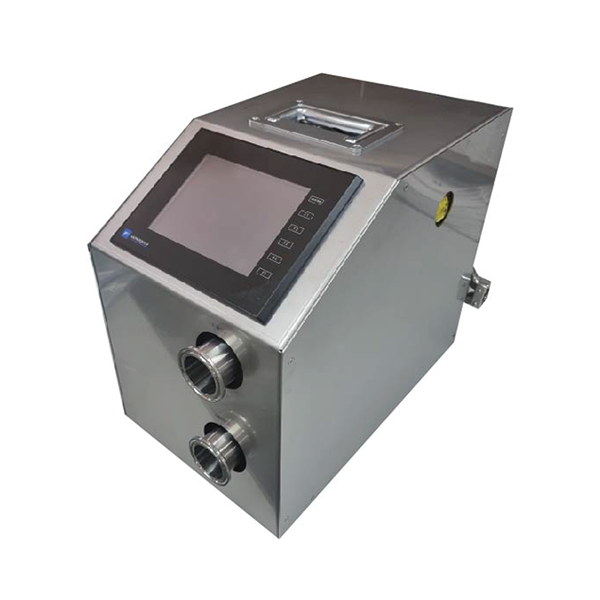

The PASSTECH S50 is a closed-loop type decontamination system upgraded from the conventional model PASSTECH S1 Lite. You can control and confirm decontamination parameter and process status using the built-in touch panel intuitively and easily.
Compared to the PASSTECH S1 Lite, the the PASSTECH S50 offers twice the decontamination capacity. The unit also delivers high-level decontamination performance even for isolators with HEPA filters. It supports I/O signal control, enabling seamless integration into isolators, decontamination pass boxes, and other automated systems.
| Model | PASSTECH S50 |
| Decon. Area | Max. 50㎡ (when using 60% H2O2 solution) |
| Method | Closed-loop, Dry type |
| Injection Rate | 0.6~3.0 mL/min. |

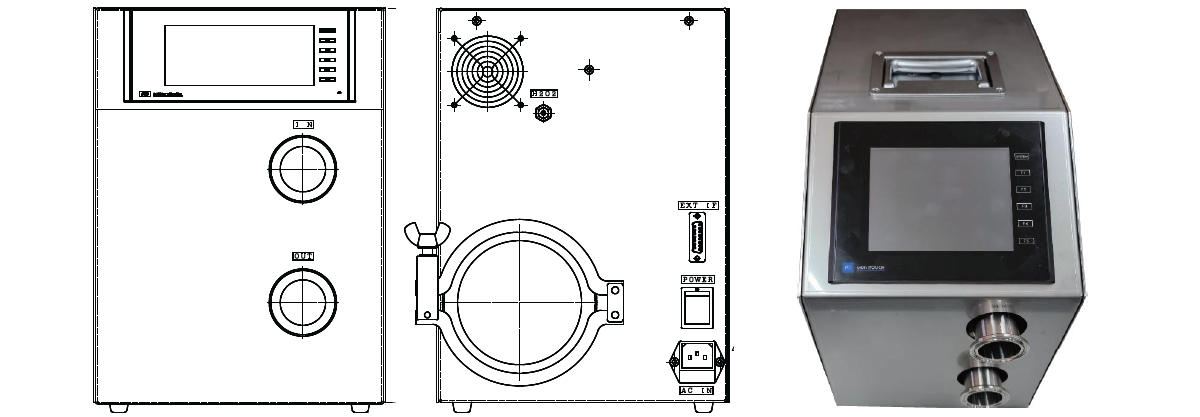

| Dimensions | 230(W) × 360(D) × 310(H) mm |
| Weight | 16.4 Kg |
| Electrical | 100~200V (50/60HZ) |
| Aeration | Catalyst built-in |
| Dehumidification | Dedicated consumable used (※Option) |
| Validation | IQ/OQ/Cycle Development |
| Application | Biosafety Cabinets (BSC) Isolators Freeze Dryers Decon Pass Boxes |
※Consumable (Option) : Dedicated desiccant (200g x 50ea/Box)
