Spectrophotometer

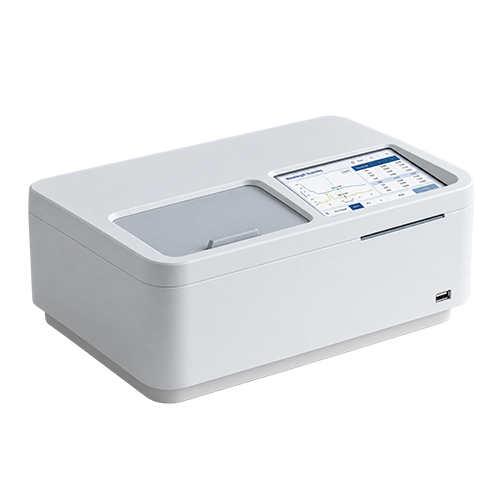

Spectrophotometer SP-300Plus
Characteristic
Broad Compatibility
The SP-300Plus is highly compatible with a wide range of cells through an interchangeable cell adapter. Supported cells include 16 mm test tubes, 1-inch round cells, 1-inch square cells, 10 mm square cuvettes, and 10 x 50 mm rectangular cuvettes, providing a comprehensive solution for various laboratory environments.
Intuitive User Interface
A 7-inch color touch screen allows for seamless navigation and operation. Every measurement mode, the timer, file browser, and recent data logs can be accessed with a single touch from the main screen. Interactive graph manipulation is supported through intuitive long-press, drag, and pinch-to-zoom gestures.
Versatile Connectivity
The device is equipped with two USB Type-A ports, one USB Type-B port, and an Ethernet port. Measurement data export/import, software and firmware updates, and database backups can be performed using an external USB drive. Network printer connectivity is also supported for direct printing of measurement reports.
Compact Design
With dimensions of 141 mm (W) x 350 mm (D) x 240 mm (H) and a weight of just 4.4 kg, the SP-300Plus is highly space-efficient and optimized for desktop laboratory environments without compromising performance.
Specification
Photometric System | Single-beam type |
Light source | Tungsten-Halogen Lamp |
Wavelength range | 320 - 1,100 nm |
Wavelength Accuracy | <± 1.5 nm |
Wavelength Reproducibility | <± 0.1 nm |
Spectral Resolution | 1.0 nm |
Spectral Bandwidth | < 5 nm |
Scanning Speed | 12.7 nm/s (in 1nm steps) |
Photometric Measuring Range | ± 3 Abs |
Photometric Accuracy | <± 0.005 Abs at 0.0 to 0.5 Abs <± 1% Abs at 0.50 to 2.0 Abs (NIST SRM 930e) |
Photometric Linearity | <0.5% to 2Abs @546 nm |
Stray Light | < 0.1%T at 340 nm with NaNO2 |
Display | 7-inch touchscreen (Resolution: 1280 x 800) |
Sample Cell Compatibility | 16mm test tube, 1 inch square, 1 inch round, 10 * 10 mm square, 10*50 mm rectangular cuvette |
Dimensions (H x W x D) | 141 mm x 350 mm x 240 mm |
Weight | 4.4 kg |
Enclosure Rating | IP30 with closed lid |
Power Supply | Benchtop Power Supply |
Power Requirements | 110 - 240 VAC (50/60 Hz) |
Interfaces | USB type A (2), USB type B, Ethernet |
